SCM Nova SI 4K EP 3ph

STANDARD EQUIPMENT

• Anodized aluminum alloy carriage sliding on mechanical fixed hardened steel guides
• It can lock at any position.
• 10 years warranty for the carriage sliding system
• Overhead saw guard with incorporated dust extraction
• “READY 3 UP” control, for 3 programmable axes
• 3 positioning modes: continuous, incremental or automatic
• Memory capacity for up to 99 programs
•

• Powered control of blades unit lifting and tilting
• Tools data setting with automatic height adjustment in respect of the blade angle
•

• Powered parallel fence with electronic programmer
• movements through recirculating ball screws
• Position readout on encoder
• The fence assembly can be easily removed
•

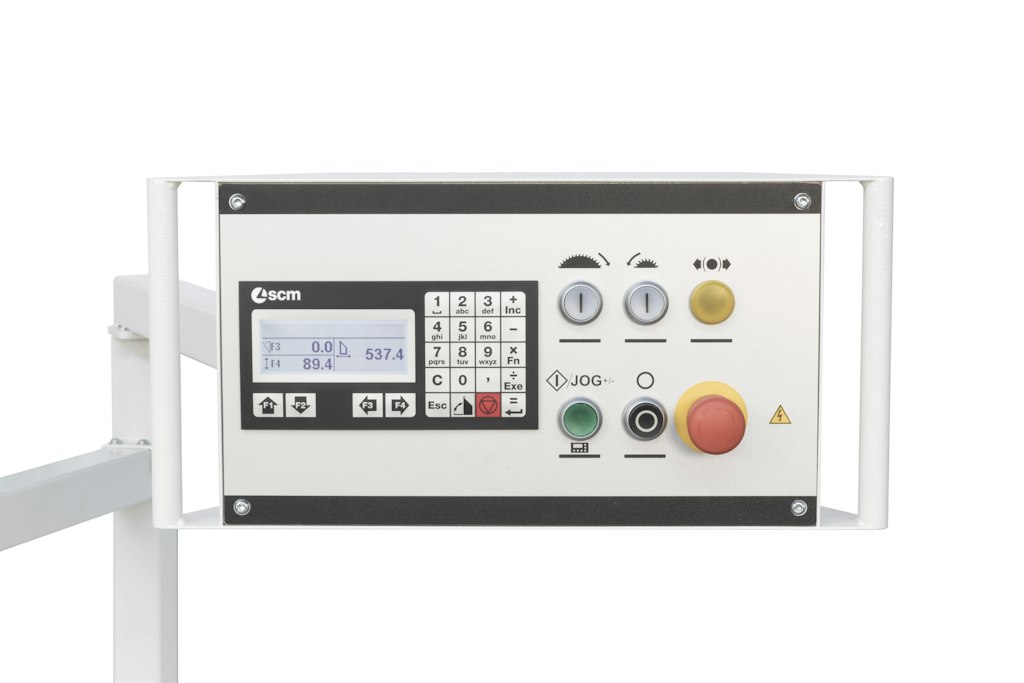

• Mobile upperhead control panel
• Blade group lifting on "dove-tail" guideways, by means of lateral handweel.
• Blade tilting on high rigidity sliding side trunnions, by means of frontal handweel with gravitational readout.
• Independent powered scoring unit, with external set up
• Vertical and horizontal adjustments are carried out by user-friendly knobs, easily operated from the front of the machine.
• Squaring frame (1200 x 650 mm) with:
• telescopic swinging arm support
• idle roller to facilitate the panel loading/unloading
• Telescopic squaring fence with:
• 2 flip-over stops with lens
• metric/imperial rule tilted towards the operator
• Tilting up to 45°
• Outfeed table extensions
• SCM Thundercut: Optimizer/Sequencer APP for iPadOS and Android tablets
• It can be activated with the QR code included with the machine. The App allows you to:
• manage your machines and material inventory
• create, edit or import projects; import cutting lists ("cpout" file format)
• Optimize and personalize your cutting lists
• Get guided step by step cut instructions, thanks to the intuitive 3D Sequencer
• print labels with bar code (Bluetooth connectivity - for compatible label printers)

SAFETY/PROTECTIONS

• Emergency pushbutton located on the front machine side
• Overload protection
• Overhead saw guard with incorporated dust extraction, 80 mm outlet diameter
• Automatic brake on main blade
• Main power switch can be locked in the off position with a padlock

TOOLING INCLUDED

• Blades set, code “58.08.74”
• Saw blade: diameter: 315 mm / arbor diameter: 30 mm / thickness: 3.2 mm / Z 48
• Scoring blade: diameter: 120 mm / arbor diameter: 20 mm
• Min. ÷ max. thickness: 3.1 ÷ 4.3 mm (conical) / Z 20
• Trimming shoe, push stick and push handle
• Toolbox: Wrenches, allen wrenches, user manual, spare parts catalog

** Specifications subject to change without notice **
