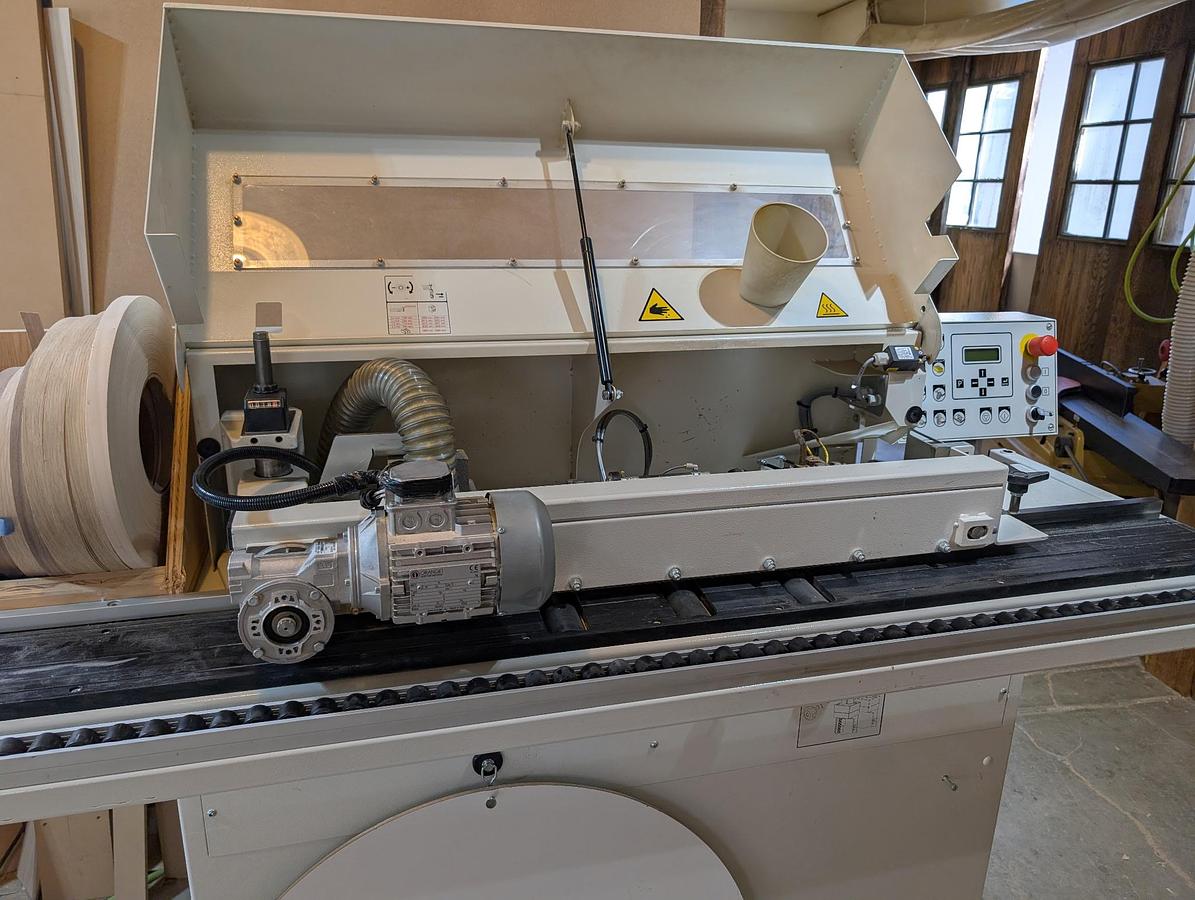

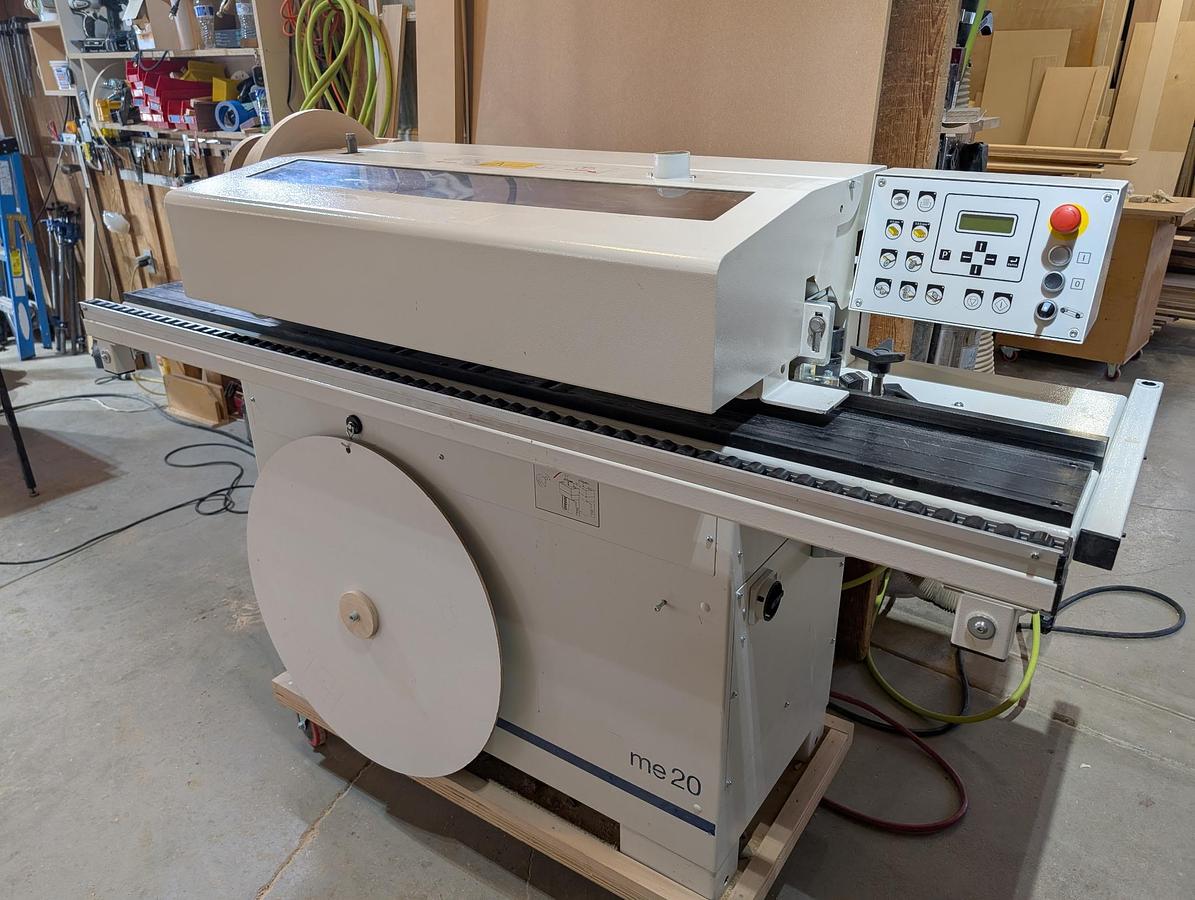

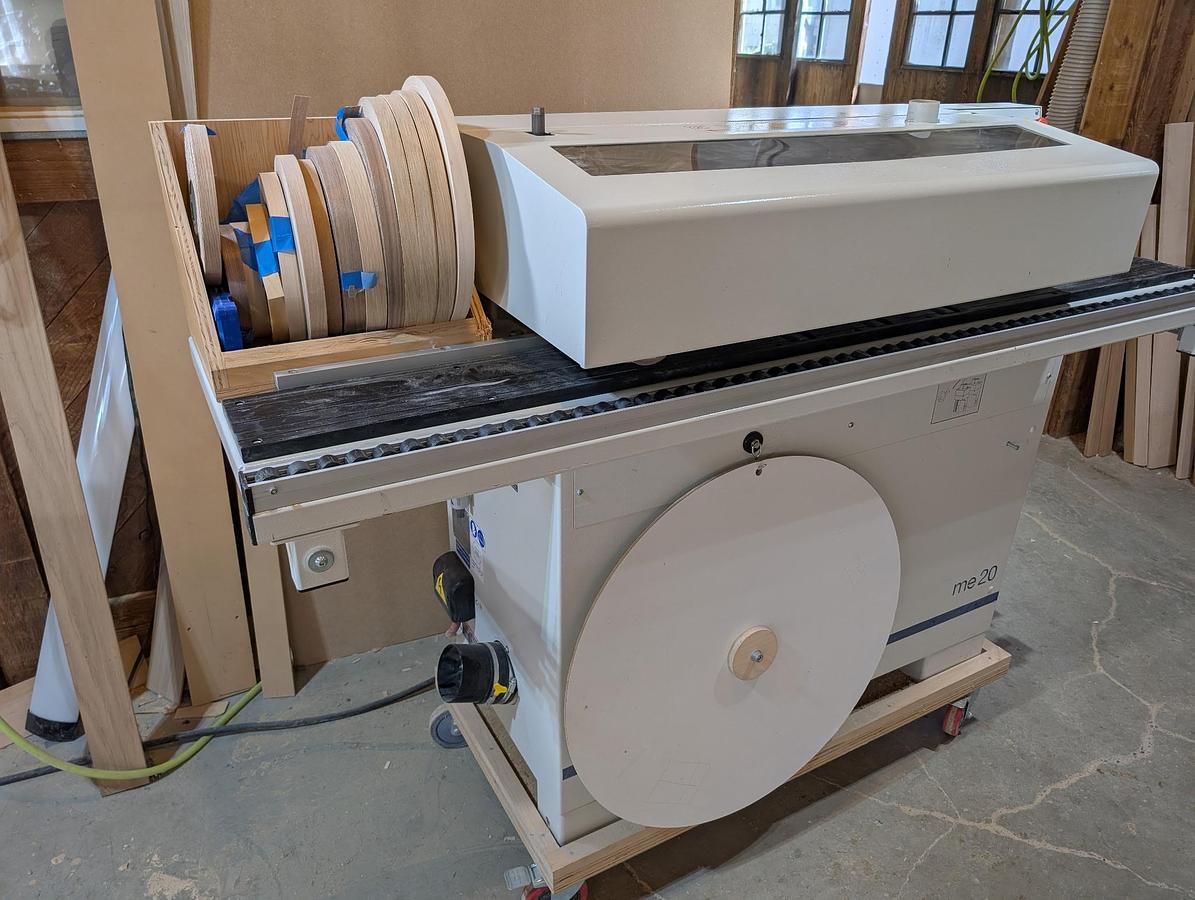

Mini Max ME20 Edgebander

The 2021 SCM Minimax ME20 is an entry-level automatic edgebander designed for small to medium cabinet and woodworking shops.

Specifications

• Panel Thickness: 12–50 mm (1/2"–2")
• Edge Thickness (Rolls): 0.4–2.0 mm PVC, ABS, melamine, veneer
• Solid Wood Strips: Up to 5 mm
• Minimum Panel Length: 180 mm (120 mm for front end cutting only)
• Minimum Panel Width: 65 mm
• Feed Speed: 6 m/min (approximately 20 ft/min)
• Glue Pot Capacity: 0.5 kg
• Glue Type: EVA hot-melt
• Operating Temperature: 20–190°C
• Compressed Air: 6.5 bar (95 psi)
• Electrical: 230V, Single Phase (also available in 3-phase)
• Machine Weight: Approximately 270 kg (595 lbs)

Standard Equipment

• Automatic edge feed
• Teflon-coated glue pot with quick heat-up
• Two pressure rollers
• Pneumatic end-cut unit
• Top and bottom trimming unit
• PLC control panel
• Adjustable infeed fence
• Emergency stop and safety enclosure
• Friction-free worktable with support rollers
