CANTEK | SS512TB TILTING SPINDLE SHAPER

· Tilting spindle from -5° to +45°.

· 1 ¼" interchangeable spindle is standard (other sizes available).

· Large cast-iron table is ground and polished for maximum stability and durability.

· Powerful 7.5 HP motor for even the most demanding profiling work.

· Five spindle speeds can be easily adjusted to suit your tool diameter.

· Electronic spindle brake for added safety and facilitates fast changeover.

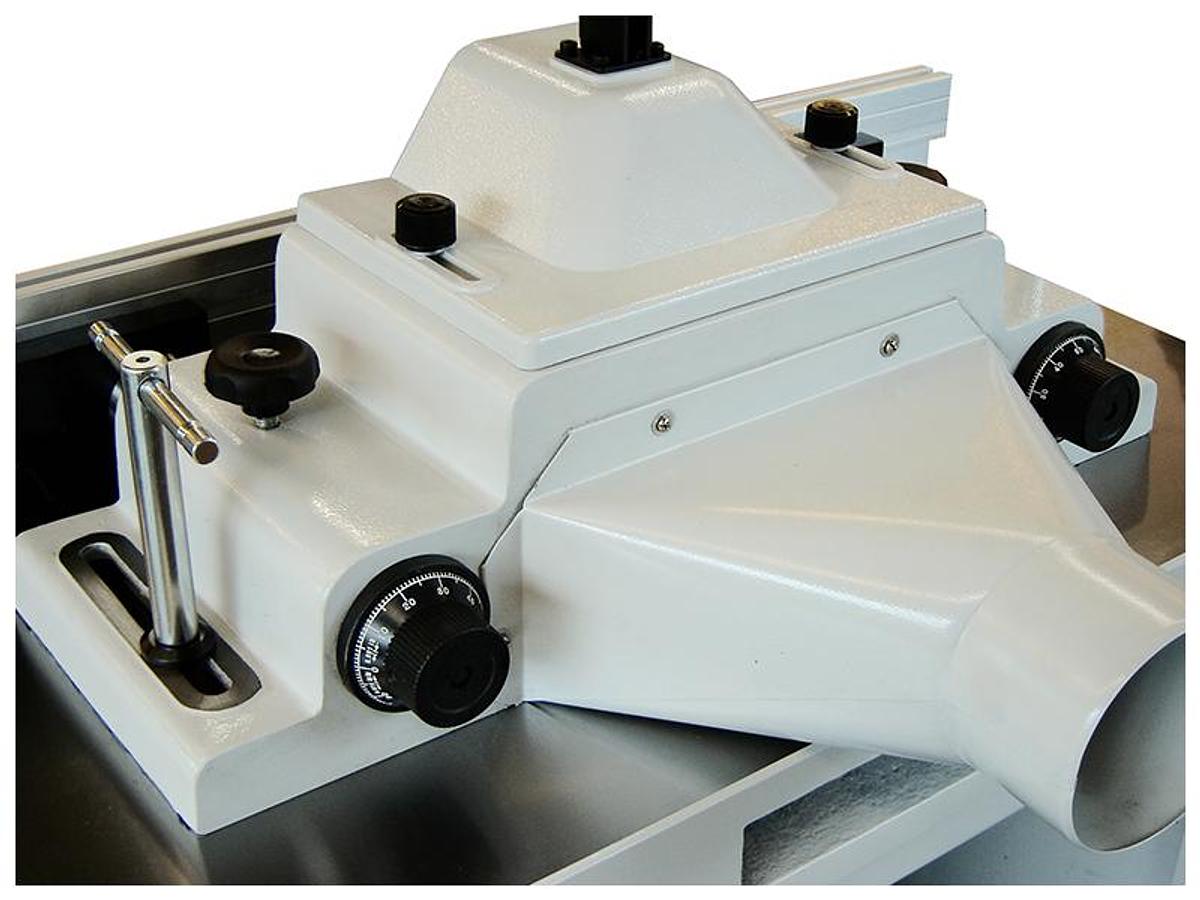

· Precision fence assembly with micro infeed and outfeed fence adjustment.

· The finger-style fence allows the fence to be adjusted around the cutter for added safety and workpiece stability

Key Advantages

· Cast iron ground & polished table with insert rings & t-slot for mitre / tenoning jig.

· Precision ground and electronically balanced spindle.

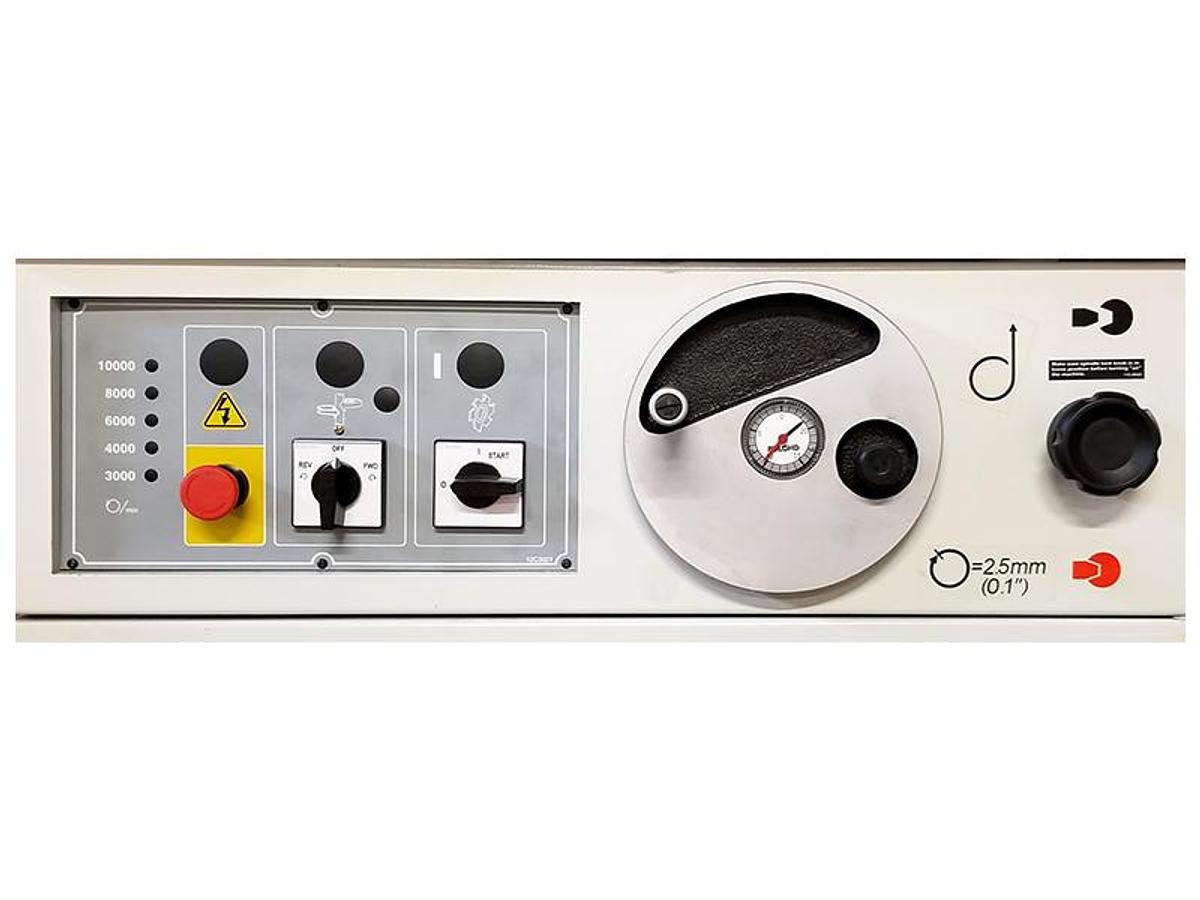

· V-belt drive with (5) spindle speeds is easily accessed from the front of the machine (3/4/6/8/1000 R.P.M.).

· Electric spindle brake for added safety.

· Spindle lock – with limit switch safety, the machine will not start with the lock engaged.

· Micro spindle height adjustment with a dial indicator for precise height adjustment.

· 1 ¼" Interchangeable cutter spindle is standard.

· Forward/reverse spindle rotation.

· Adjustable "finger" type fence.

· Independent micro-fence adjustment on both sides.

· Plug to accept Cantek Power Feeder and table is pre-drilled for mounding feeder base.

· Includes the following standard equipment:

· 1 ¼" spindle.

· (1) 5" dust chute on guard & (1) 4" dust chute in the table.

· Safety guard.

· Mitre tenoning jig.
